size:
Highest position: length 192X width 57X height 82.5cm
Lowest position: length 200X width 57X height 26cm
The height from the ground to the upper pulley is 64cm.
Back angle: 75º
All dimensions ±5%.

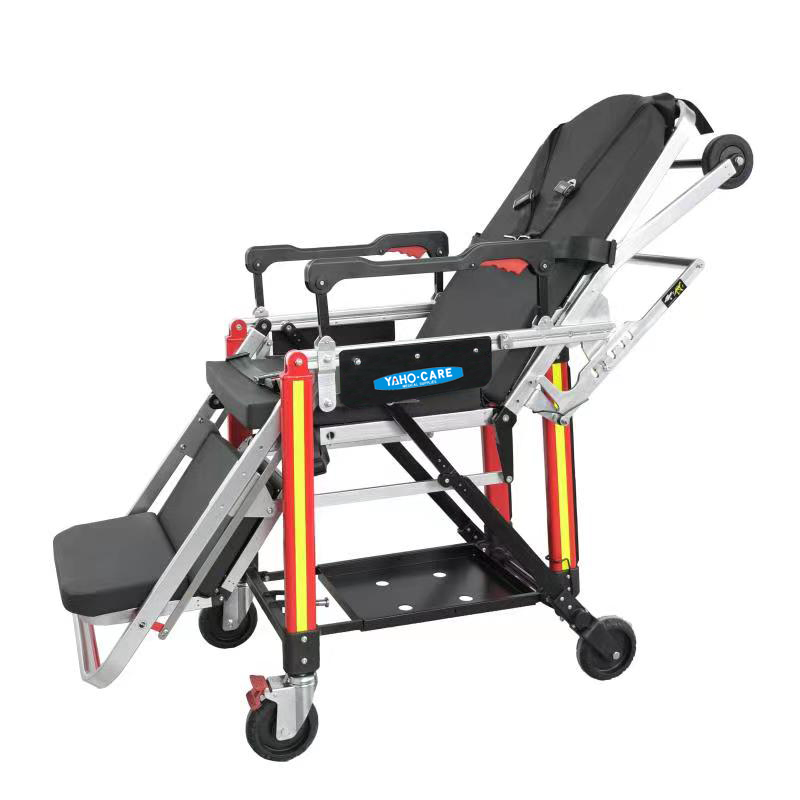

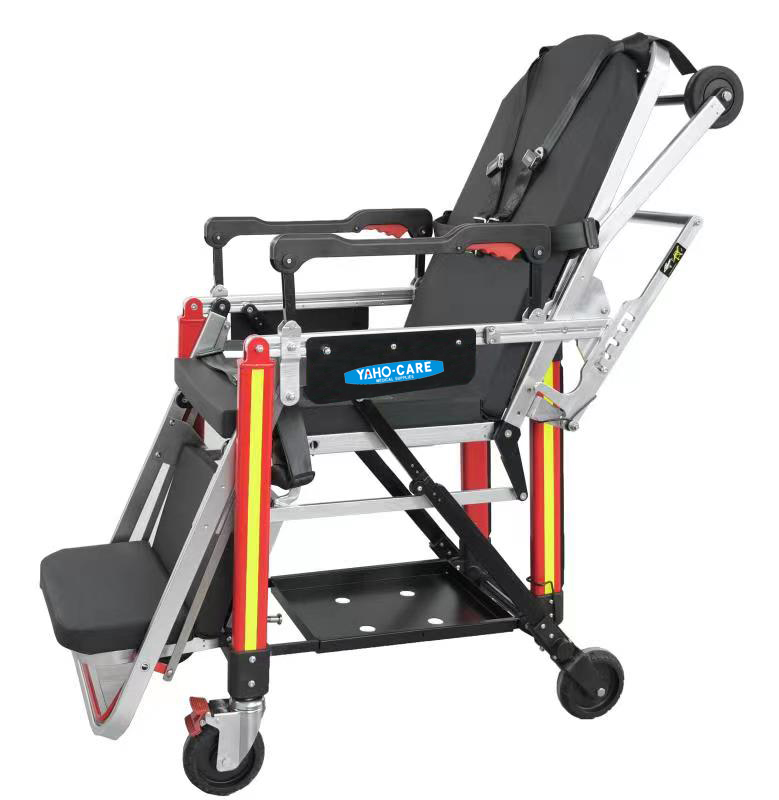

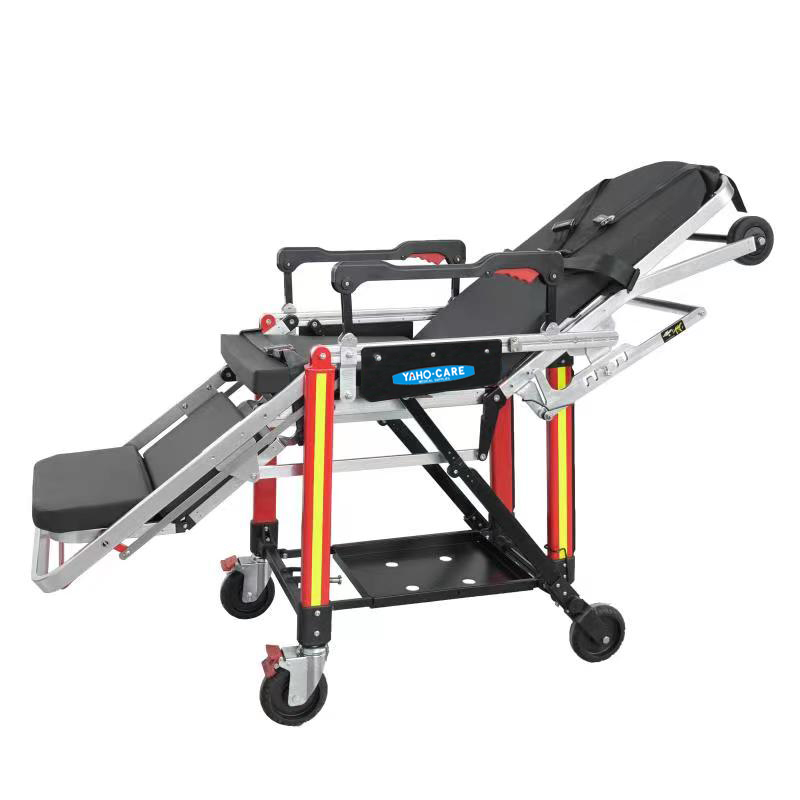

This stretcher can be quickly converted into a seat with 4 different angle positions.

This stretcher can be used in narrow spaces such as elevators. The length is adjustable. The length adjustment mechanism adopts a slot-type synchronous folding mechanism.

The stretcher legs have an automatic opening function when the stretcher is unloaded from the vehicle, and the diagonal brace has a double protection and anti-folding function.

Nylon folding guardrails are used to facilitate patients on the stretcher, and are equipped with mechanical safety belts.

The stretcher mattress is made of double-layer U seamless, and the thickness of the stretcher pad is 5cm.

Equipped with a folding segment drip stand with a maximum adjustable length of 100cm. Equipped with a pneumatic auxiliary backrest.

The patient's transition from a sitting position to a semi-recumbent or supine position is faster than rapid cardiopulmonary resuscitation or endotracheal intubation.

Reflective strips are attached to the legs, making night rescue safer.
